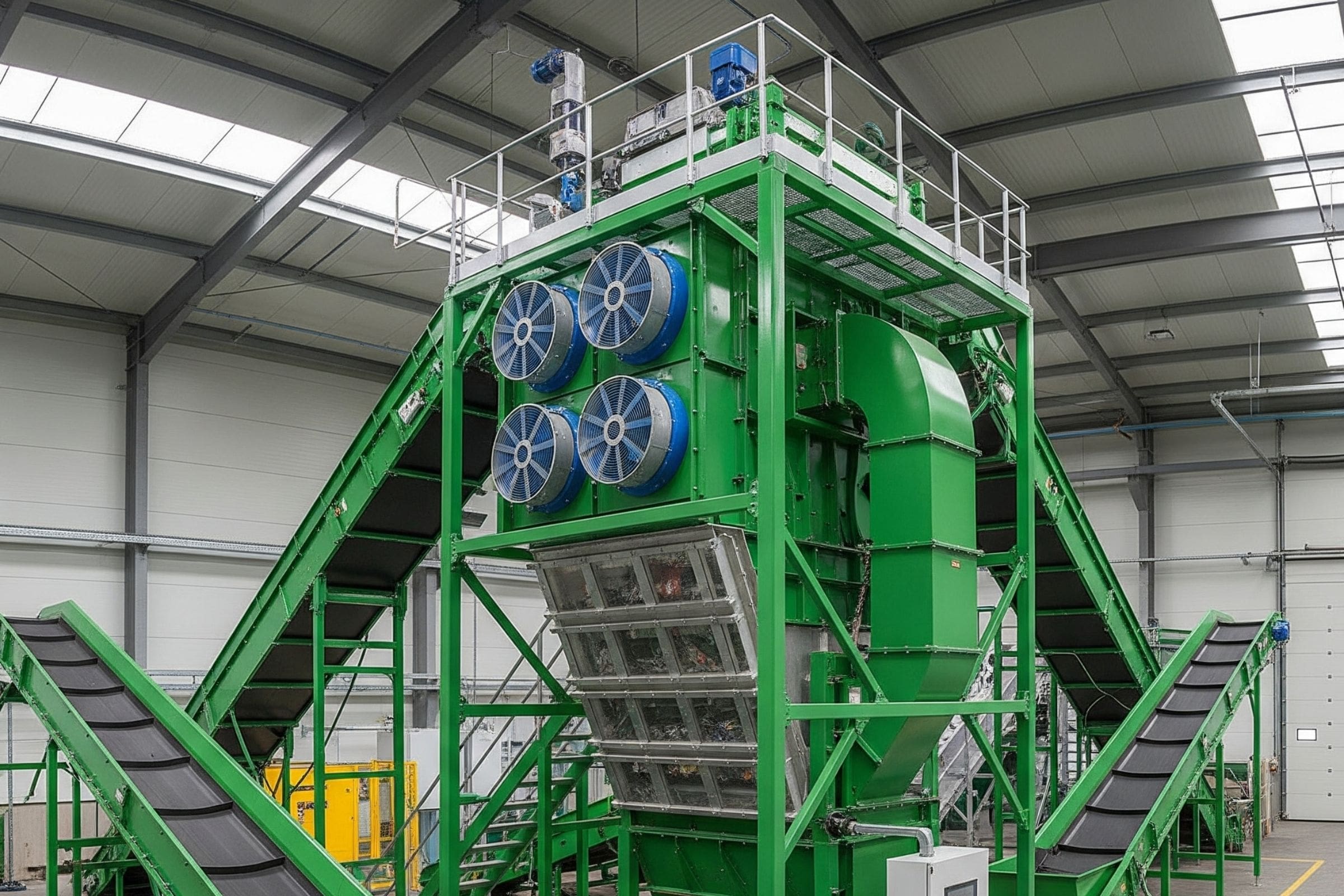

Air Classifiers are designed to efficiently separate materials based on differences in particle size and density. These systems create a fluidized environment in which particles are suspended in an air stream and classified according to their aerodynamic behavior, influenced by gravity and inertial forces. Air Classifiers enable the effective separation of valuable minerals or targeted materials from lower-grade or waste constituents by utilizing high-efficiency airflows. This significantly enhances process efficiency and improves product purity. They are widely used across various industrial applications, including metal, mineral, and ore processing lines; electronic waste recycling facilities; and industries such as cement, ceramics, and construction chemicals.



Integrated Cyclone Separators are used to remove particulate matter from exhaust gases by creating a high-speed, spiraling air motion within the cyclone chamber. This generates centrifugal force, which drives heavier particles toward the outer wall of the cyclone, where they fall into a collection chamber. Lighter particles and clean air are directed upward and sent to subsequent filtration stages. The use of cyclones reduces particulate emissions and prevents clogging in downstream filters, ensuring more stable and efficient operation.



Air Classifier - Technical Selection Table

Model Rotor Diameter (mm) Airflow Volume (m³/h) Cut Size Range (µm) Rotor Speed (RPM) Motor Power (kW) Processing Capacity (kg/h) Approx. Weight (kg)
AC-200 200 500 5–50 3000–5000 2.2 50–200 300
AC-300 300 1000 5–50 3000–4800 3 100–400 500
AC-400 400 2000 5–60 2800–4500 4 200–600 800
AC-500 500 3000 5–60 2800–4200 5.5 300–800 1200
AC-600 600 4000 5–70 2600–4000 7.5 500–1200 1600
AC-700 700 5000 5–70 2600–3800 11 800–1600 2200
AC-800 800 6000 5–80 2500–3600 15 1000–2000 3000
AC-900 900 7500 5–80 2500–3500 18.5 1500–2500 3800
AC-1000 1000 9000 5–100 2400–3400 22 2000–3000 4500
AC-1100 1100 11000 5–100 2300–3200 30 2500–4000 5500
AC-1200 1200 13000 5–100 2200–3000 37 3000–5000 6500
AC-1300 1300 15000 5–120 2200–2800 45 4000–6000 7500
AC-1400 1400 17000 5–120 2200–2800 55 5000–7000 9000
AC-1500 1500 19000 5–120 2000–2600 75 6000–8000 11000
AC-1600 1600 22000 5–150 2000–2500 90 7000–10000 13000



NOTE: Our company manufactures systems in a wide range of capacities, from laboratory scale to industrial scale. To receive a price quote for your desired capacity, please send an email to
