HIGH CAPACITY OPERATIONS

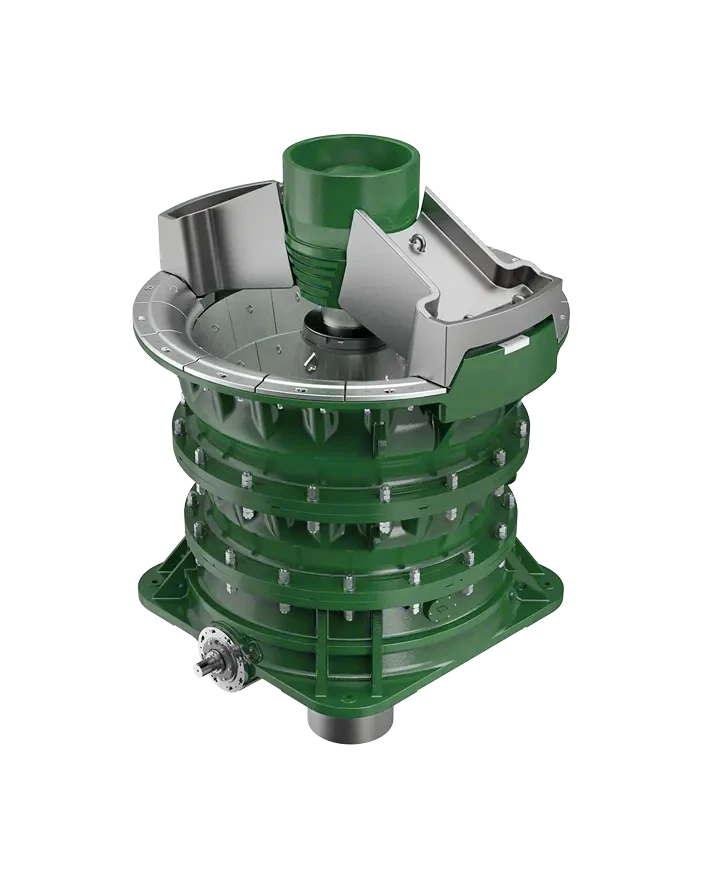

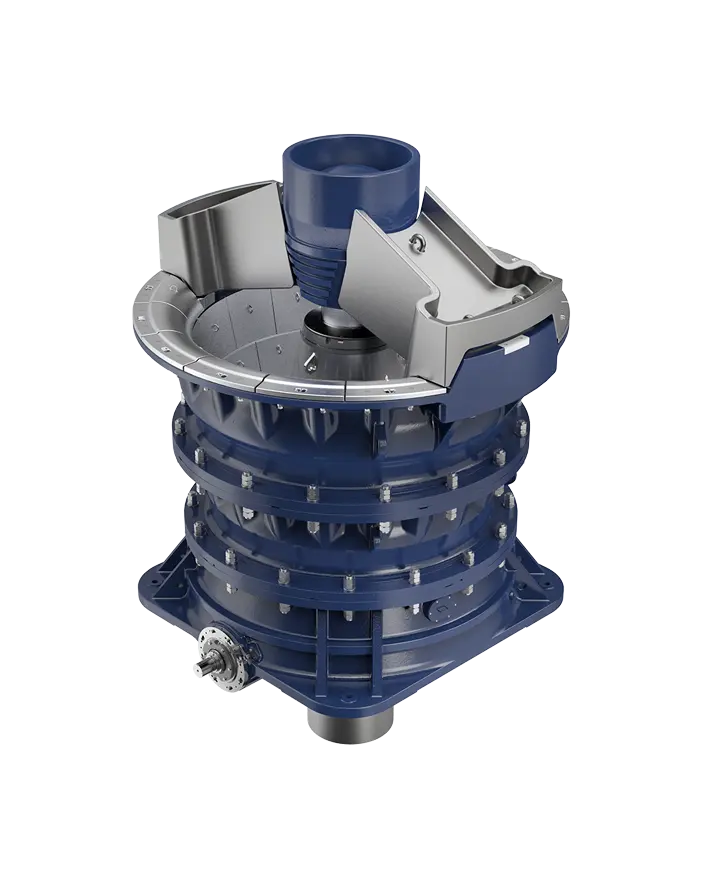

Gyratory crushers are designed to deliver exceptional performance in demanding applications. Featuring a conical crushing head mounted on a shaft, these crushers offer a reliable and efficient solution for processing large quantities of material. The upper part of the shaft is held in a flexible bearing, while the lower part moves eccentrically in a circular motion, ensuring continuous operation. The crushing action occurs around the entire cone, with maximum movement at the bottom, providing a uniform and fine product. Gyratory crushers offer lower power consumption and minimal stress fluctuations, making them ideal for high-capacity operations where reliability and efficiency are crucial. They excel in producing a finer product with greater consistency, making them the perfect choice for a variety of industries.

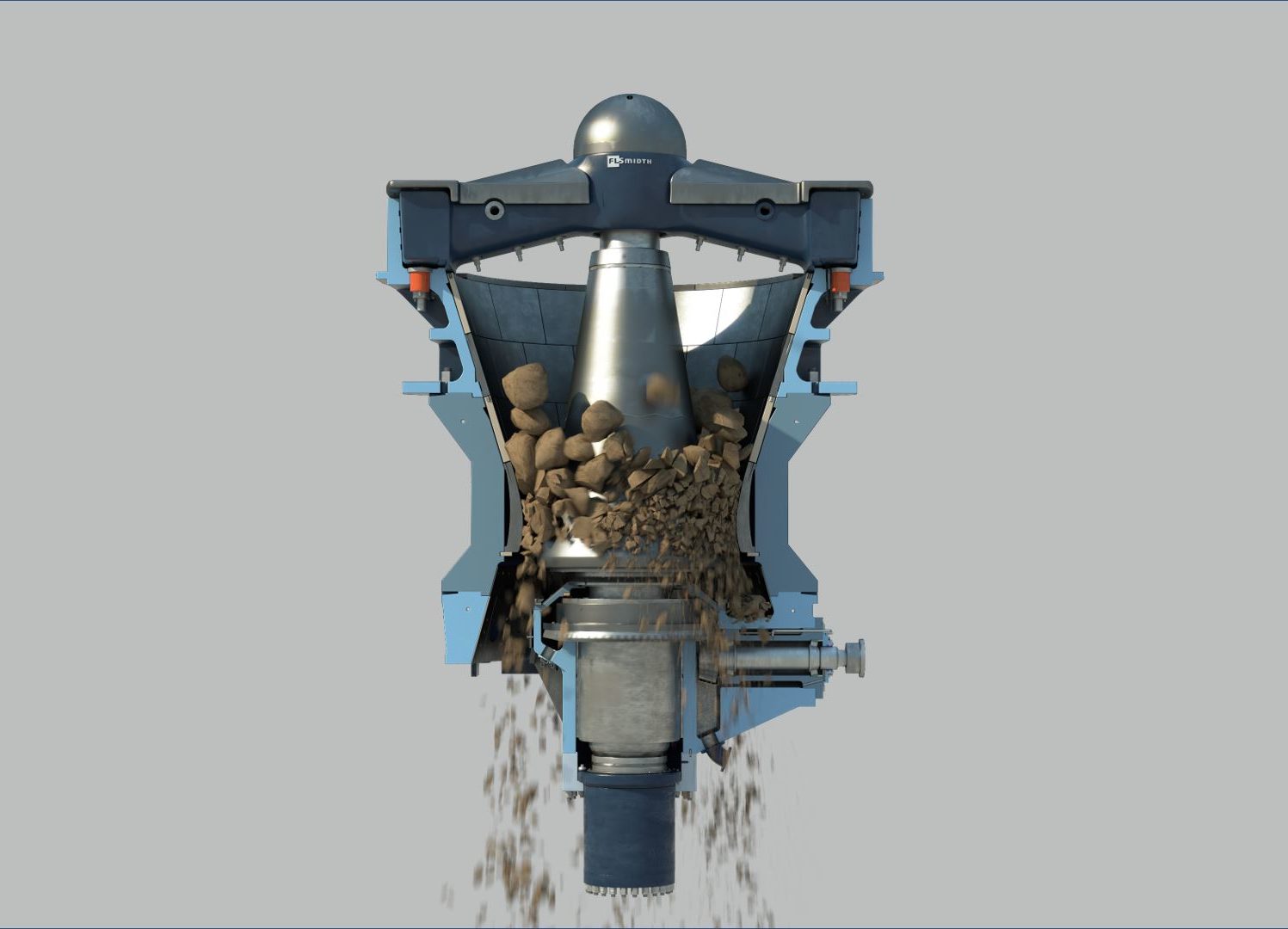

These crushers are primarily used in surface crushing plants and are ideal for those handling large volumes of material. The gyratory crusher consists of a solid, fixed conical shell (concaves) and a crushing head mounted on a central spindle, which is either hydraulically or mechanically suspended. The lower part of the spindle is supported by a hydraulic piston, and a gear mechanism moves the bottom of the shaft eccentrically. This arrangement compresses material between the rotating head and the top shell segments, minimizing horizontal abrasive motion.
| Model | Capacity (tons/hour) | Feed Opening (mm) | Discharge Setting (mm) | Motor Power (kW) | Max Feed Size (mm) | Approx. Weight (kg) |
|---|---|---|---|---|---|---|
| GC-100 | 200 – 300 | 900 | 125 – 175 | 160 | 750 | 50000 |
| GC-200 | 300 – 400 | 1000 | 125 – 175 | 200 | 800 | 60000 |
| GC-300 | 400 – 500 | 1100 | 150 – 200 | 250 | 850 | 70000 |
| GC-400 | 500 – 600 | 1200 | 150 – 200 | 315 | 900 | 80000 |
| GC-500 | 600 – 700 | 1300 | 175 – 225 | 355 | 950 | 90000 |
| GC-600 | 700 – 800 | 1400 | 175 – 225 | 400 | 1000 | 100000 |
| GC-700 | 800 – 900 | 1500 | 200 – 250 | 450 | 1050 | 110000 |
| GC-800 | 900 – 1000 | 1600 | 200 – 250 | 500 | 1100 | 120000 |
| GC-900 | 1000 – 1100 | 1700 | 225 – 275 | 560 | 1150 | 130000 |
| GC-1000 | 1100 – 1200 | 1800 | 225 – 275 | 630 | 1200 | 140000 |
| GC-1100 | 1200 – 1300 | 1900 | 250 – 300 | 710 | 1250 | 150000 |
| GC-1200 | 1300 – 1400 | 2000 | 250 – 300 | 800 | 1300 | 160000 |
| GC-1300 | 1400 – 1500 | 2100 | 275 – 325 | 900 | 1350 | 170000 |
| GC-1400 | 1500 – 1600 | 2200 | 275 – 325 | 1000 | 1400 | 180000 |
| GC-1500 | 1600 – 1800 | 2300 | 300 – 350 | 1120 | 1450 | 190000 |
NOTE: Our company manufactures systems in a wide range of capacities, from laboratory scale to industrial scale. To receive a price quote for your desired capacity, please send an email to
