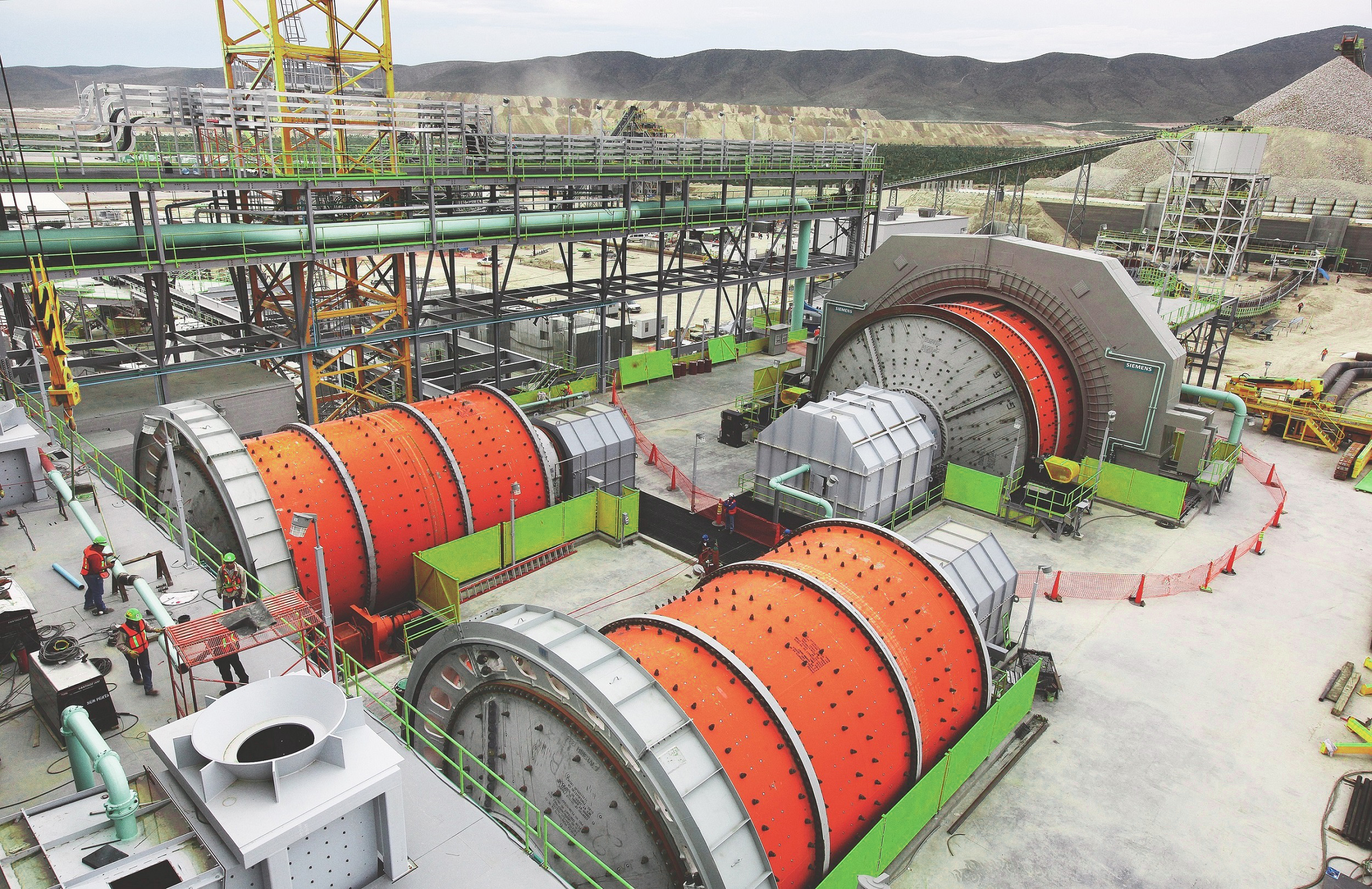

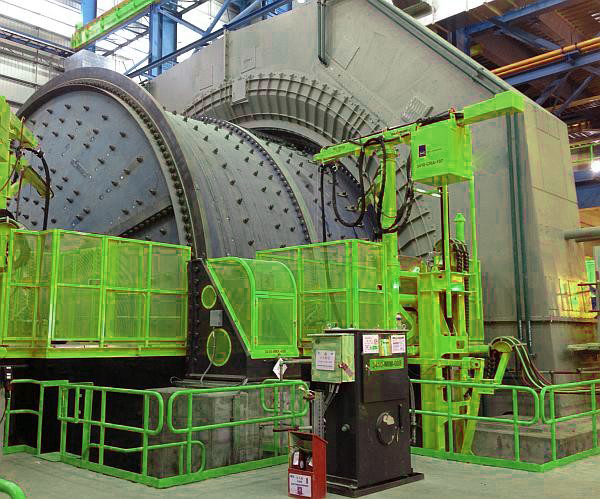

SAG mills are designed based on the semi-autogenous grinding principle, and they are devices that primarily grind most of the material using its own weight and impact force. AG mills, on the other hand, operate on a fully autogenous grinding principle. As a result, finer grinding is achieved due to the friction and collisions between the particles already present in the material. Both types of mills are specifically designed for high-capacity production plants and large-scale investments, particularly in the mining industry.

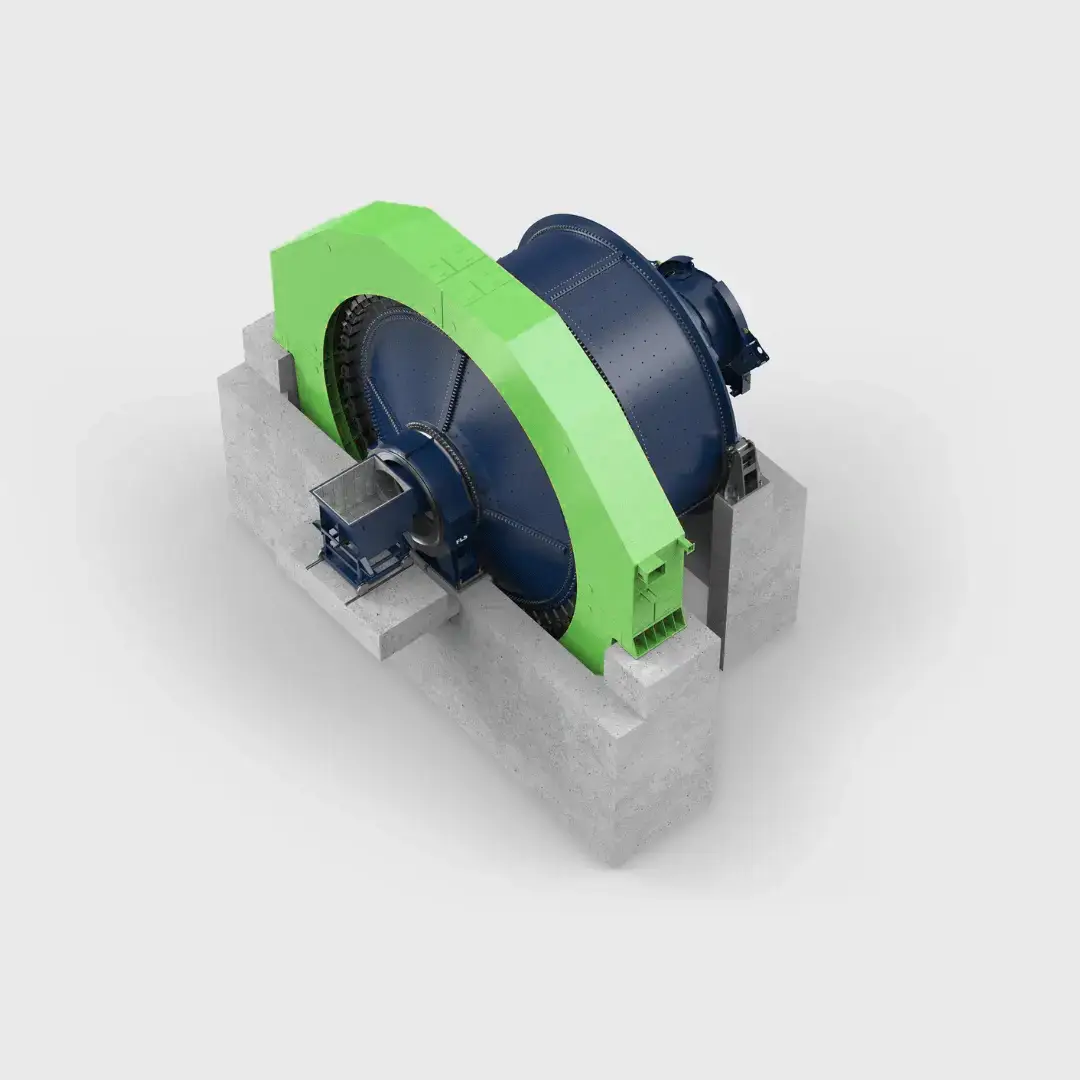

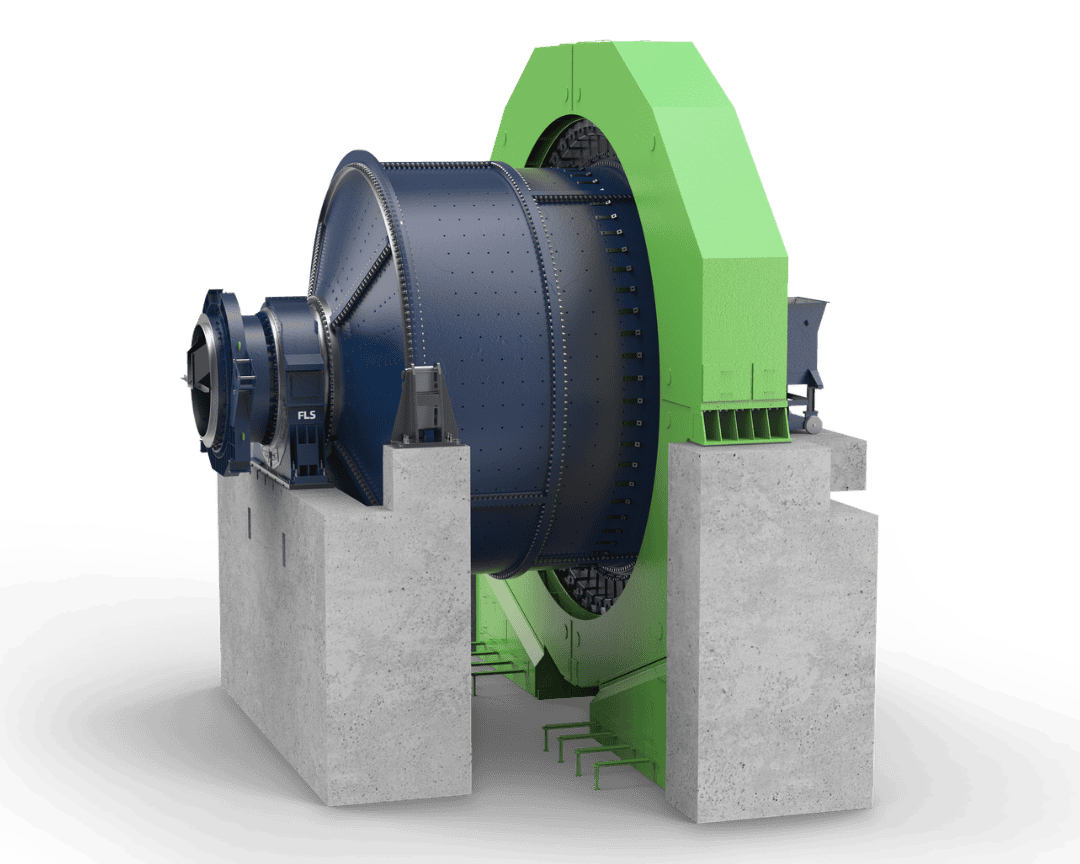

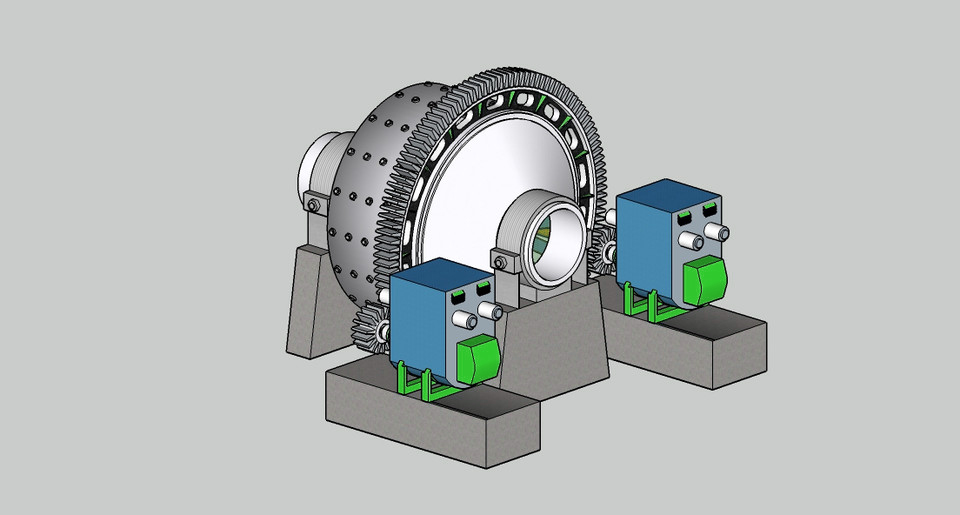

SAG mills are equipped with high-power motors and specially designed shell mechanisms. They operate at adjustable speeds depending on the incoming raw material size. AG mills offer variable adjustment options based on different material properties. The rotary drum system used in both types of mills is manufactured with alloy steel and advanced manufacturing techniques to ensure high durability. The compression and rotation efficiency within the drum are optimized in harmony with the motor power, resulting in a significant increase in processing capacity.

SAG and AG Mills - Technical Selection Table

Model Mill Type Drum Diameter (mm) Drum Length (mm) Capacity (tons/hour) Rotating Speed (RPM) Motor Power (kW) Approx. Weight (kg)
SAG-3000 SAG 3000 1500 50 – 100 12 400 85000
SAG-3400 SAG 3400 1800 70 – 130 11 500 100000
SAG-3800 SAG 3800 2000 90 – 160 10 630 115000
SAG-4200 SAG 4200 2200 110 – 200 9 800 130000
SAG-4600 SAG 4600 2400 140 – 250 8 1000 150000
SAG-5000 SAG 5000 2600 170 – 300 7.5 1250 170000
SAG-5400 SAG 5400 2800 200 – 350 7 1400 190000
SAG-5800 SAG 5800 3000 230 – 400 6.5 1600 210000
SAG-6200 SAG 6200 3200 260 – 450 6 1800 230000
AG-3000 AG 3000 1500 30 – 60 14 355 80000
AG-3400 AG 3400 1800 50 – 90 13 450 95000
AG-3800 AG 3800 2000 70 – 110 12 560 110000
AG-4200 AG 4200 2200 90 – 130 11 710 125000
AG-4600 AG 4600 2400 110 – 150 10 900 140000
AG-5000 AG 5000 2600 130 – 180 9 1100 160000



NOTE: Our company manufactures systems in a wide range of capacities, from laboratory scale to industrial scale. To receive a price quote for your desired capacity, please send an email to
