UNMATCHED BOWL GEOMETRY

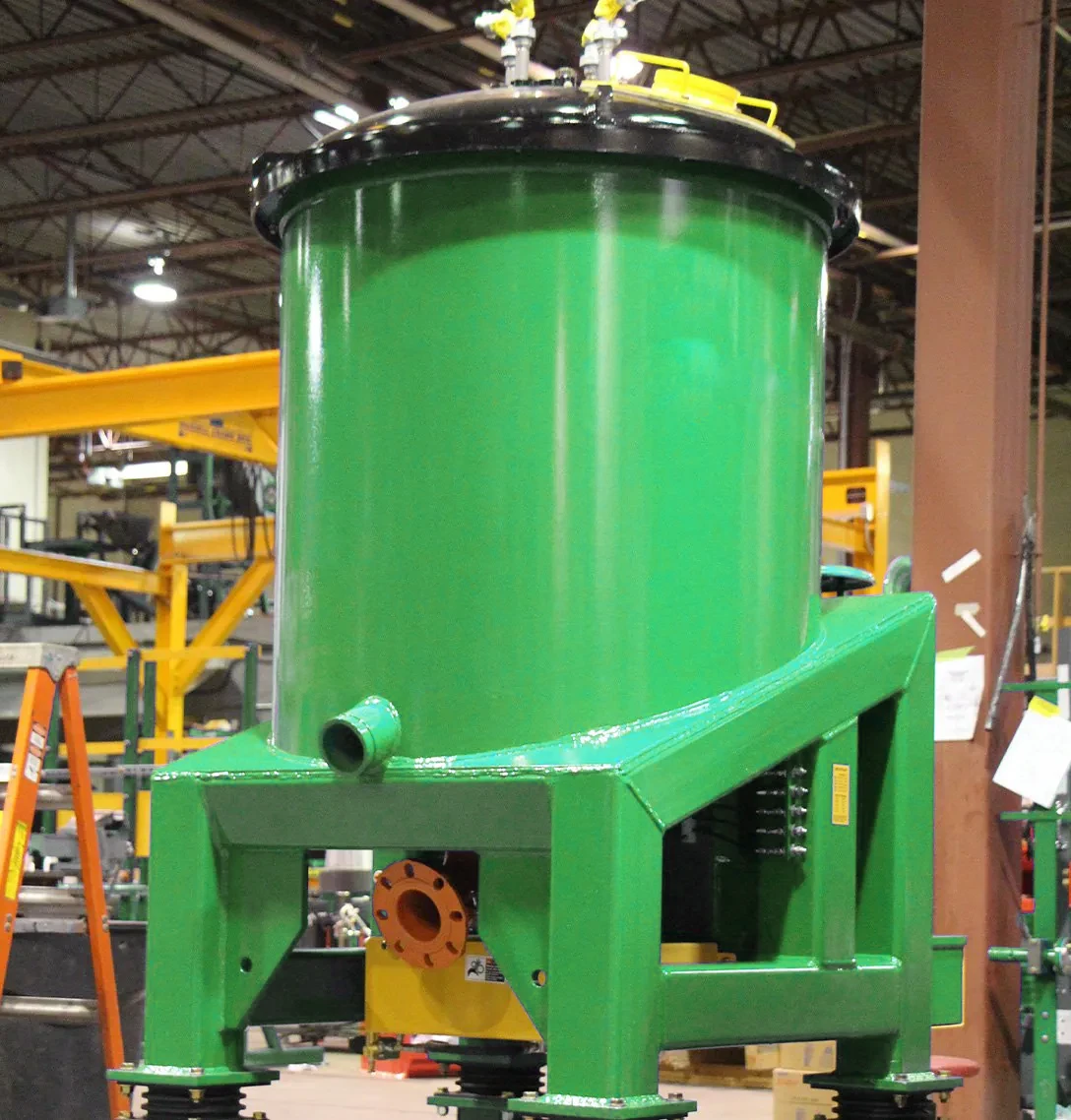

The Falcon Concentrator is a highly efficient gravity separation device specifically designed for the recovery of fine minerals, including gold and other precious metals. By utilizing centrifugal forces, this concentrator effectively concentrates heavy particles from ore feed, ensuring enhanced recovery rates. Key features of the Falcon Concentrator include an adjustable apron and rotor speed, allowing for customization to optimize recovery performance based on the specific mineral being processed. Its applications span various industries, includin de-ashing and desulfurization of coal, recovery of rare earth elements and precious minerals such as gold, recycling of electronic waste, pre-concentration of iron ores, separation of celestite, bentonite, tungsten ore, chromite, nickel laterites, limestone, and other minerals.
Equipped with a self-cleaning mechanism, the Falcon Concentrator minimizes downtime and increases throughput by eliminating the need for manual cleaning. The overall dimensions vary by model, yet it maintains a compact footprint that ensures seamless integration into existing processing plants without extensive modifications. Standardized feed and discharge connections further enhance convenience. The concentrator is capable of processing materials ranging from millimeter to micron sizes. The optimal feed material size is 1 mm, with the ability to recover particles down to 15 microns. Its unmatched bowl geometry prevents compaction and effectively removes light particles from the concentration zone, maximizing recovery efficiency.
| Model | Processing Capacity (tons/hour) | Bowl Diameter (mm) | Max G-Force | Motor Power (kW) | Water Consumption (m³/h) | Approx. Weight (kg) |
|---|---|---|---|---|---|---|
| FC-1 | 1 | 180 | 200 | 2.2 | 0.3 | 700 |
| FC-2 | 2 | 220 | 200 | 3 | 0.5 | 1000 |
| FC-3 | 3 | 260 | 220 | 4 | 0.7 | 1500 |
| FC-5 | 5 | 300 | 220 | 5.5 | 1 | 2200 |
| FC-7 | 7 | 350 | 240 | 7.5 | 1.5 | 3000 |
| FC-10 | 10 | 400 | 240 | 11 | 2 | 4000 |
| FC-15 | 15 | 450 | 250 | 15 | 3 | 5000 |
| FC-20 | 20 | 500 | 250 | 18.5 | 4 | 6000 |
| FC-25 | 25 | 550 | 250 | 22 | 5 | 7500 |
| FC-30 | 30 | 600 | 250 | 30 | 6 | 9000 |
| FC-40 | 40 | 650 | 250 | 37 | 7 | 11000 |
| FC-50 | 50 | 700 | 250 | 45 | 8 | 13000 |
| FC-60 | 60 | 750 | 250 | 55 | 9 | 15000 |
| FC-80 | 80 | 800 | 250 | 75 | 10 | 18000 |
| FC-100 | 100 | 900 | 250 | 90 | 12 | 22000 |
NOTE: Our company manufactures systems in a wide range of capacities, from laboratory scale to industrial scale. To receive a price quote for your desired capacity, please send an email to
