Proses Makina’s Rotary Furnace is an advanced high-temperature processing system engineered for the efficient smelting, refining, and thermal treatment of a wide range of materials. Featuring a robust cylindrical design that rotates on its horizontal axis, the furnace ensures uniform heat distribution and precise control of chemical reactions throughout the entire batch. Designed to meet the demanding needs of industries such as metal recovery, mineral processing, and hazardous waste treatment, our rotary furnace is equipped with state-of-the-art automation and integrated atmosphere control systems.

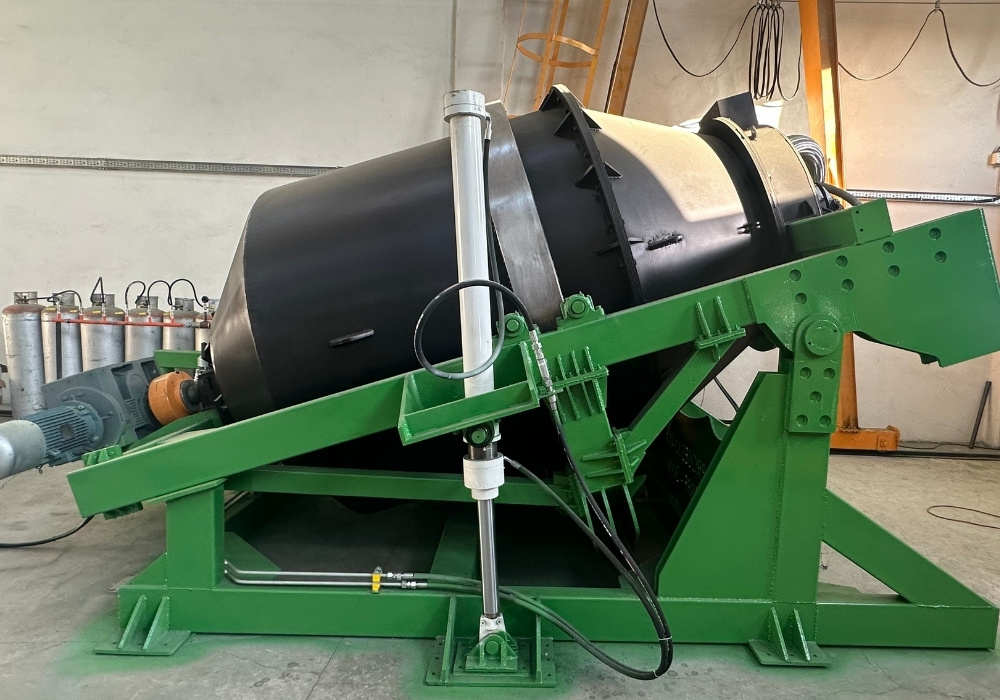

The furnace consists of a rotating drum with a special drive and bearing system on the chassis, and it includes hydraulic tilting. Liquid metal is poured from the furnace door by tilting the furnace. The burner system and stack are located on the hydraulic opening-closing door. It also has a rotatable and tiltable reaction vessel capable of heating residues to temperatures above 1500 °C through oxygen burners, facilitating efficient material separation and recovery.

Following the thermal process, molten outputs are seamlessly transferred to Proses Makina’s fully automated casting unit, enabling streamlined downstream handling and material recovery. With a strong focus on innovation, reliability, and process optimization, our rotary furnace solutions are trusted by industrial partners requiring consistent performance under extreme operating conditions. Whether for precious metal recovery or complex material transformation, Proses Makina delivers proven technology with scalable results.

Rotary Furnace - Technical Selection Table

Model Processing Capacity (kg/batch) Furnace Volume (m³) Max Operating Temp (°C) Rotation Speed Range (RPM) Burner Power (kW) Approx. Weight (kg)
RF-500 500 1.0 1600 0.2–1.5 150 15000
RF-1T 1000 2.0 1600 0.2–1.5 220 20000
RF-1.5T 1500 3.0 1700 0.2–1.8 300 25000
RF-2T 2000 4.0 1700 0.2–1.8 400 30000
RF-3T 3000 5.0 1800 0.3–2.0 500 38000
RF-4T 4000 6.0 1800 0.3–2.0 600 46000
RF-5T 5000 7.5 1900 0.3–2.2 750 55000
RF-6T 6000 9.0 1900 0.3–2.2 900 65000
RF-7T 7000 10.0 2000 0.3–2.5 1050 75000
RF-8T 8000 11.0 2000 0.3–2.5 1200 85000
RF-10T 10000 12.0 2000 0.3–2.5 1500 100000
RF-12T 12000 14.0 2000 0.3–2.5 1800 120000
RF-15T 15000 16.0 2000 0.3–3.0 2200 140000
RF-18T 18000 18.0 2000 0.3–3.0 2500 160000
RF-20T 20000 20.0 2000 0.3–3.0 3000 180000



NOTE: Our company manufactures systems in a wide range of capacities, from laboratory scale to industrial scale. To receive a price quote for your desired capacity, please send an email to
