MULTI-ZONE TEMPERATURE CONTROL

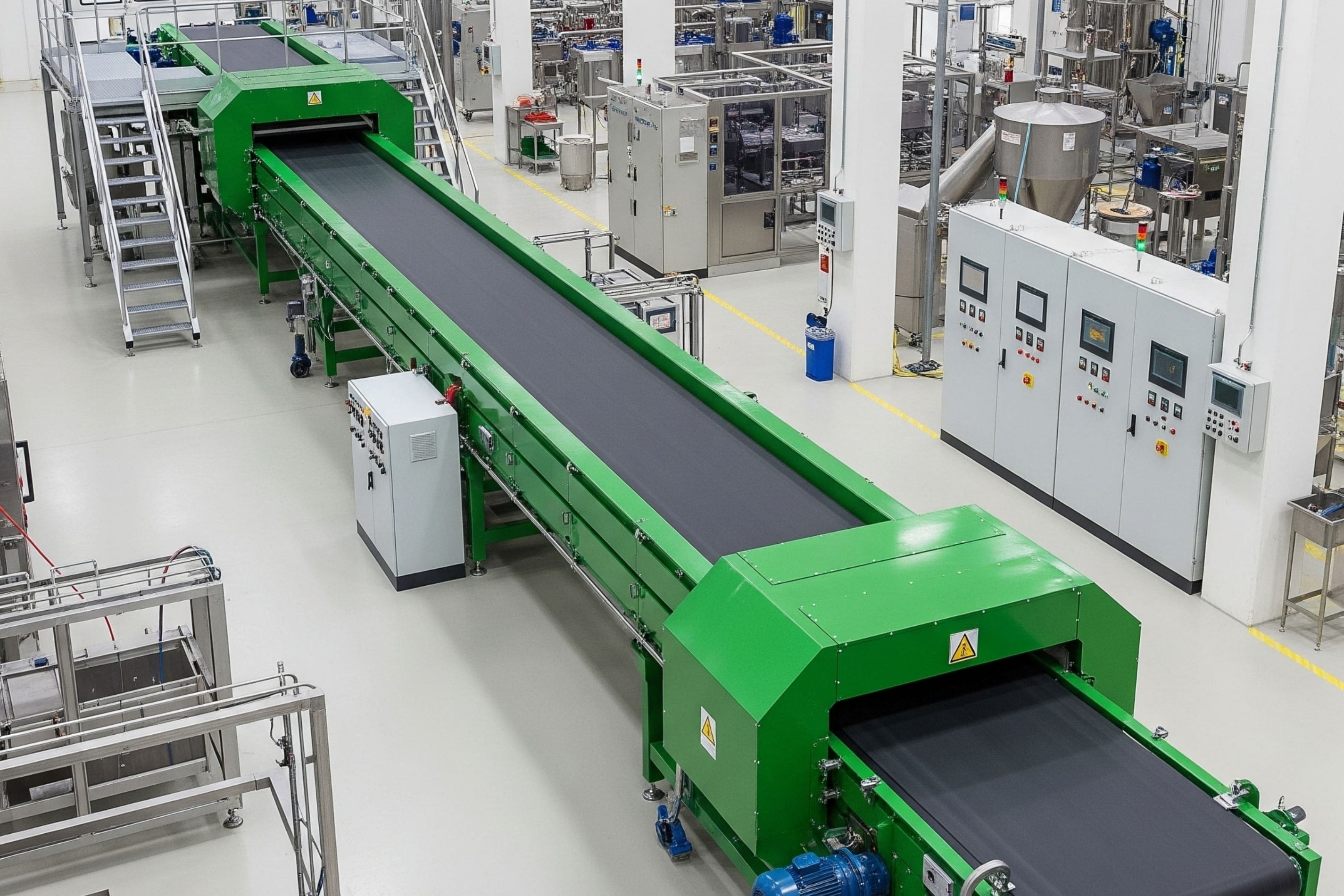

The Belt Dryer is specifically designed to meet the drying needs of the mining and metal processing industries. It is ideal for continuous operation and for drying materials such as metal concentrates, mineral ores, metal hydroxide sludge, and other moisture-laden materials. The product is evenly spread over a perforated or mesh conveyor belt and transported through controlled drying zones, where hot air is applied in a carefully regulated manner. This process ensures optimal moisture removal without affecting the physical structure or composition of the material, preserving product quality and improving downstream processes such as smelting, grinding, or chemical treatment.
Constructed from high-strength, corrosion-resistant stainless steel, the Belt Dryer is built to endure harsh industrial environments with abrasive and chemically active materials. The system includes adjustable belt speeds, integrated temperature control, and exhaust gas handling to optimize energy use and maintain process stability. With its modular design and scalable capacity, the Belt Dryer offers a reliable solution for operations aiming to increase throughput, improve material handling, and reduce energy costs. It is a trusted choice for producers who need consistency, durability, and performance in metal and mineral drying applications.
| Model | Belt Width (mm) | Drying Length (m) | Belt Speed (m/min) | Operating Temperature (°C) | Drying Capacity (kg/hour) | Installed Power (kW) | Approx. Weight (kg) |
|---|---|---|---|---|---|---|---|
| BD-500 | 500 | 6 | 0.1–0.5 | 50–120 | 100–200 | 5 | 3500 |
| BD-800 | 800 | 8 | 0.1–0.5 | 50–120 | 200–400 | 7.5 | 4500 |
| BD-1000 | 1000 | 10 | 0.1–0.5 | 60–120 | 300–600 | 11 | 6000 |
| BD-1200 | 1200 | 12 | 0.1–0.5 | 60–140 | 400–800 | 15 | 8000 |
| BD-1400 | 1400 | 14 | 0.1–0.5 | 60–140 | 600–1000 | 18.5 | 10000 |
| BD-1600 | 1600 | 16 | 0.1–0.5 | 60–160 | 800–1200 | 22 | 12000 |
| BD-1800 | 1800 | 18 | 0.1–0.5 | 60–160 | 1000–1500 | 30 | 15000 |
| BD-2000 | 2000 | 20 | 0.1–0.5 | 60–160 | 1200–1800 | 37 | 18000 |
| BD-2200 | 2200 | 22 | 0.1–0.5 | 70–180 | 1500–2200 | 45 | 21000 |
| BD-2400 | 2400 | 24 | 0.1–0.5 | 70–180 | 1800–2500 | 55 | 24000 |
| BD-2600 | 2600 | 26 | 0.1–0.5 | 70–180 | 2000–3000 | 65 | 28000 |
| BD-2800 | 2800 | 28 | 0.1–0.5 | 70–200 | 2500–3500 | 75 | 32000 |
| BD-3000 | 3000 | 30 | 0.1–0.5 | 70–200 | 3000–4000 | 90 | 36000 |
| BD-3200 | 3200 | 32 | 0.1–0.5 | 70–200 | 3500–4500 | 110 | 40000 |
| BD-3500 | 3500 | 35 | 0.1–0.5 | 70–220 | 4000–5000 | 132 | 45000 |
NOTE: Our company manufactures systems in a wide range of capacities, from laboratory scale to industrial scale. To receive a price quote for your desired capacity, please send an email to
