Magnetic Separation for Valuable Product Recovery

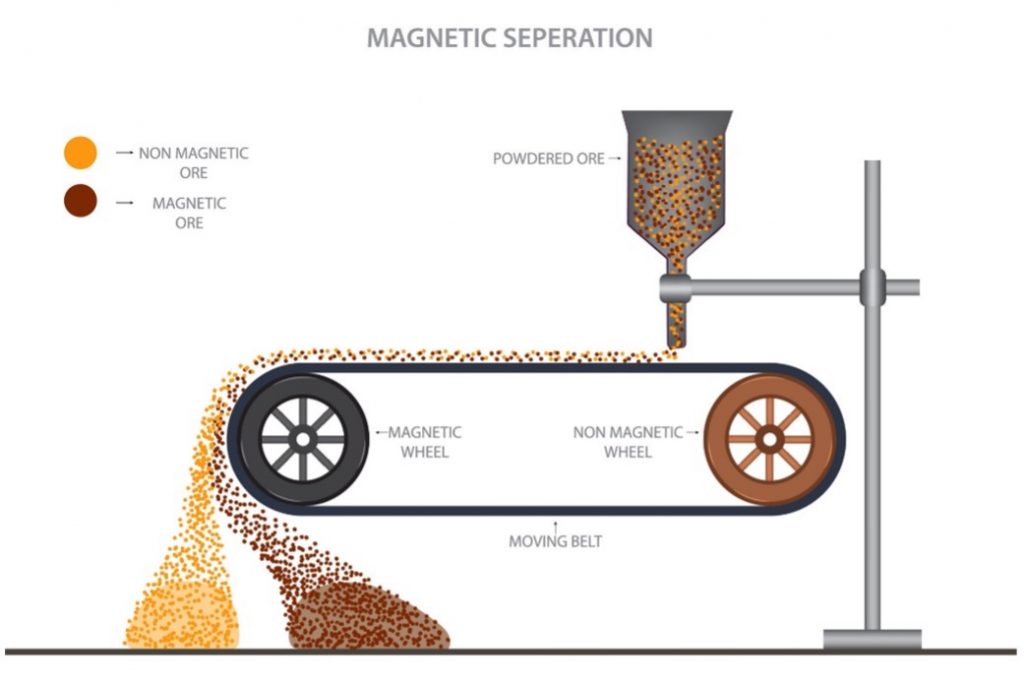

Magnetic separation is an enrichment method has long been employed for iron ore (magnetite) and it utilize the varying magnetic susceptibilities of minerals. Initially used for enriching minerals demonstrating strong magnetic susceptibilities, this method has recently been adapted for the removal of impurities or minerals exhibiting weak magnetic properties. Particularly minute quantities of impurities showing magnetic susceptibility within industrial minerals are effectively removed. The magnetic susceptibility of minerals is a measure of how strongly they are attracted to a magnetic field. It is a fundamental property of minerals that can be used to identify and characterize them.

  • Diamagnetism: Diamagnetic minerals are weakly repelled by a magnetic field. They have a negative magnetic susceptibility. Examples of diamagnetic minerals include diamond, quartz, graphite, and calcite.
  • Paramagnetism: Paramagnetic minerals are weakly attracted to a magnetic field. They have a positive magnetic susceptibility. Examples of paramagnetic minerals include aluminum, magnesium, lithium, and beryllium-bearing minerals.
  • Ferromagnetism: Ferromagnetic minerals are strongly attracted to a magnetic field and can be magnetized. They have a very high positive magnetic susceptibility. Examples of ferromagnetic minerals include iron, nickel, cobalt, and magnetite.

Magnetic separators are primarily used in three areas. First areas is the separation of metallic iron-steel particles. Separation can be performed to prevent damage to production units by iron particles (such as separating iron-steel particles from materials conveyed on belts and chutes) or to prevent impurities such as copper, bronze, brass, and lead from mixing with iron-steel scrap. The second application area of magnetic separators is the recovery of solid wastes or heavy media. Here, separation primarily resembles the enrichment of minerals exhibiting magnetic properties. The third area is mineral processing. Here, magnetic separators are used either for the enrichment of minerals exhibiting magnetic properties or for separating such minerals from the ore where they exist as impurities. Magnetic separators play a crucial role in mineral processing, particularly in mining and mineral processing industries. This process significantly enhances the efficiency of ore processing operations, leading to increased productivity and higher yields. Moreover, magnetic separators help in reducing processing costs and environmental impacts by enabling selective extraction of valuable minerals without the need for extensive chemical treatments or energy-intensive processes.

Magnetic separators are divided into four main groups based on the intensity of the magnetic field applied and the environment used. Depending on the applied field intensity, magnetic separators are classified as low or high field intensity, and depending on whether the environment is air or water, they are classified as dry or wet. In a magnetic separator, if the applied magnetic field is below 2000 gauss, it is considered low field, while if it falls between 10,000-20,000 gauss, it is deemed high field. Materials exhibiting high magnetic susceptibility (ferromagnetics) are acquired using low field intensity separators, whereas materials showing low magnetic susceptibility (paramagnetics) are obtained using high field intensity separators. Dry separation is preferred for coarse particle size, while wet separation is preferred for fine particle size.

In conclusion, magnetic separation stands as a versatile and indispensable method in ore preparation and various industrial applications. Its evolution from primarily enriching minerals with strong magnetic susceptibilities to now encompassing the removal of impurities from those with weak magnetic properties demonstrates its adaptability and utility. By leveraging the varying magnetic susceptibilities of minerals, magnetic separators efficiently extract valuable materials while minimizing environmental impact and processing costs. The diverse applications of magnetic separation, from separating metallic iron-steel particles to recovering solid wastes and enhancing mineral processing, highlight its vital role across multiple sectors.

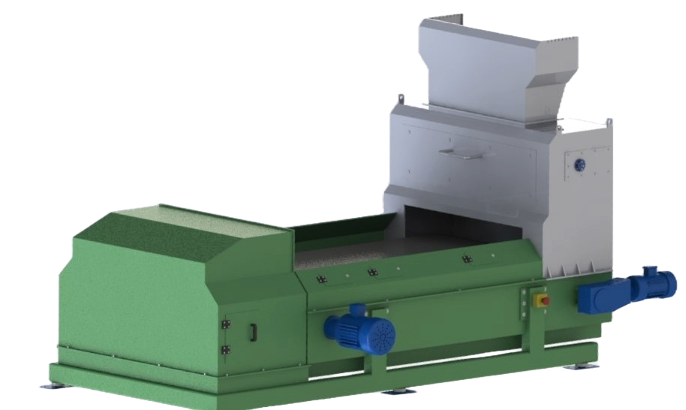

Proses Makina specializes in the production of custom-designed magnetic separators tailored to the specific needs and capacities. Our company offers flexible and customizable solutions to meet the unique requirements of customers. With years of experience and a team of expert engineers, Proses Makina develops and manufactures specially designed magnetic separators for various industrial sectors. These custom-made separators are designed to meet specific production capacities, processing speeds, particle sizes, and process requirements. Engineered to enhance productivity and optimize production processes, Proses Makina’s innovative and high-quality solutions play a crucial role in recovering valuable products and removing impurities in industrial, pilot or lab scale facilities.
